The Definitive Guide to Vivo Y20 (V2029) pin pattern password unlock

Tools and Components Required

• UMT Dongle
• Qualcomm USB Drivers
• UMT QCFire Tool
• Micro USB Cable
• PC or LAPTOP system running on Windows

Steps to Follow

• If You do not know the Model Number of Vivo Smartphone you may follow these steps
• Power On the Smartphone
• Connect the USB Cable to Smartphone & Laptop/Desktop running on Windows 10
• Open “Settings” then “Devices”
• See “Other Devices Section”
• Now You will find the Model No Of your Vivo smartphone
• Just search on Google and Know your Vivo Smartphone name

Unlocking Guidelines

• Install the Qualcomm USB Drivers in your system
• Connect the UMT Dongle to the PC or Laptop
• Download the UMT QCFire latest Version from UMT Support Access
• Now Open the Firmware Option on UMT Support Access
• Open Vivo Folder
• Download the Vivo_Y20_PD2034F.rar file and Extract

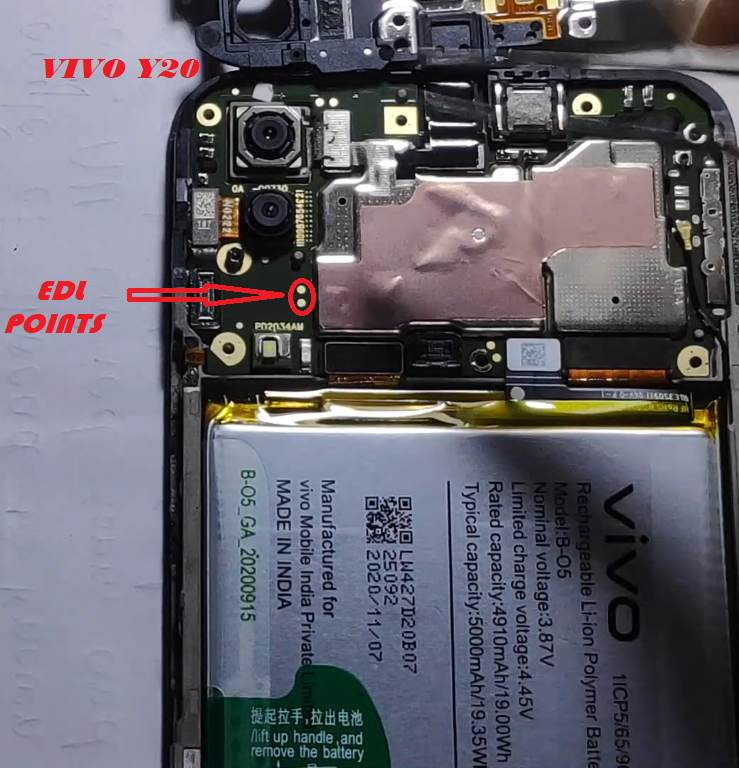

• Now open the Back Panel of the Phone and find the EDL Point
• Open UMT QCFire TOOL
• Select on Vivo Heuristic Mode Tab
• Select Model to Manual Method
• Select the downloaded firmware and Loader file
• Select Format Type “Erase UserData”
• Select “Reset FRP” Option & Press “Execute” Button
• Short the EDL Points and Connect the USB Cable
• Wait for the process to complete

Important Notes

During setting up the smartphone after the unlocking, you must connect to a Hotspot or Wi-Fi network and make your own PIN/PATTERN/PASSWORD.

If you Do not connect to ant network your smartphone may be stuck in FRP (Factory Reset Protection) Mode.

For your reference, Please Watch the Video
